Step-By-Step DreamLine Enigma Shower Door Installation

Here is the 2020 Dreamline Enigma Shower Door Installation Manual Transcript with Step By Stept Install instructions along with Tips Tricks & Links To Product Reviews, PDF Downloads And Install Videos.

I provided this transcription of the original DreamLine Install PDF for you so you can get a better idea what all you need to be doing if you want to install any of the DreamLine custom shower kits & enclosure on your own.

STEP-BY-STEP DreamLine Enigma Shower Door Installation INSTRUCTIONS

Product changes are possible so there could be some slight variation in future products. For that reason I recommend to Download the latest PDF from DreamLine.com. I supply our copy because the download is much faster. Plus we update it as needed.

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com

Here you find Product Reviews,



Installed Kit
Installed Kit

Here you find Product Reviews,

PDF Downloads

Install Videos.



I provided this transcribet for you so you can get a better idea what all you need to be doing if you want to install any of the DreamLine custom shower kits & enclosure on your own.

Product changes are possible so there could be some slight variation in future products. For that reason I recommend to Download the latest PDF from DreamLine.com. I supply our copy because the download is much faster. Plus we update it as needed.

IMPORTANT

  1. The 10mm thick high-quality glass door & wall panel of your sliding shower door or tub doors are very heavy.
    Since they are very heavy I recommend a professional installer.
  2. DreamLine ® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com
  3. *The SPARKLE model name designates a model with the MirrorMax patterned glass. The installation is identical to the Enigma-X.

Please read these instructions carefully before installing. If you have any questions regarding installation, please contact our technical support specialists.

Monday through Friday 8:00 AM – 7:00 PM EST

at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support group at [email protected]
For more information about DreamLine® Shower Doors & Tub Doors please visit DreamLine.com

Good Luck With Your Installation!

*The SPARKLE model name designates a model with the MirrorMax patterned glass. The installation is identical to the Enigma-X. image Right Hand door installation shown ##=finish Brushed Stainless Steel 08- Polished Stainless Steel Please read these instructions carefully before installing. If you have any questions regarding installation, please contact our technical support specialists Monday through Friday 8:00 AM – 7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support group at Support@DreamLine.com For more information about DreamLine® Shower Doors & Tub Doors please visit DreamLine.com
DreamLine Enigma X Glass Shower Door – Manual Cover Sheet

SHDR-61606210-## SHDR-61487610-## SHDR-61727610-## SHDR-61607610-##

*The SPARKLE model name designates a model with the MirrorMax patterned glass. The installation is identical to the Enigma-X.

DreamLine Enigma X Glass Shower Door - Install manual Section A- F
DreamLine Enigma X Glass Shower Door – Install manual Section A- F

DreamLine Enigma X Right Hand door installation shown

##=finish

Brushed Stainless Steel 08- Polished Stainless Steel

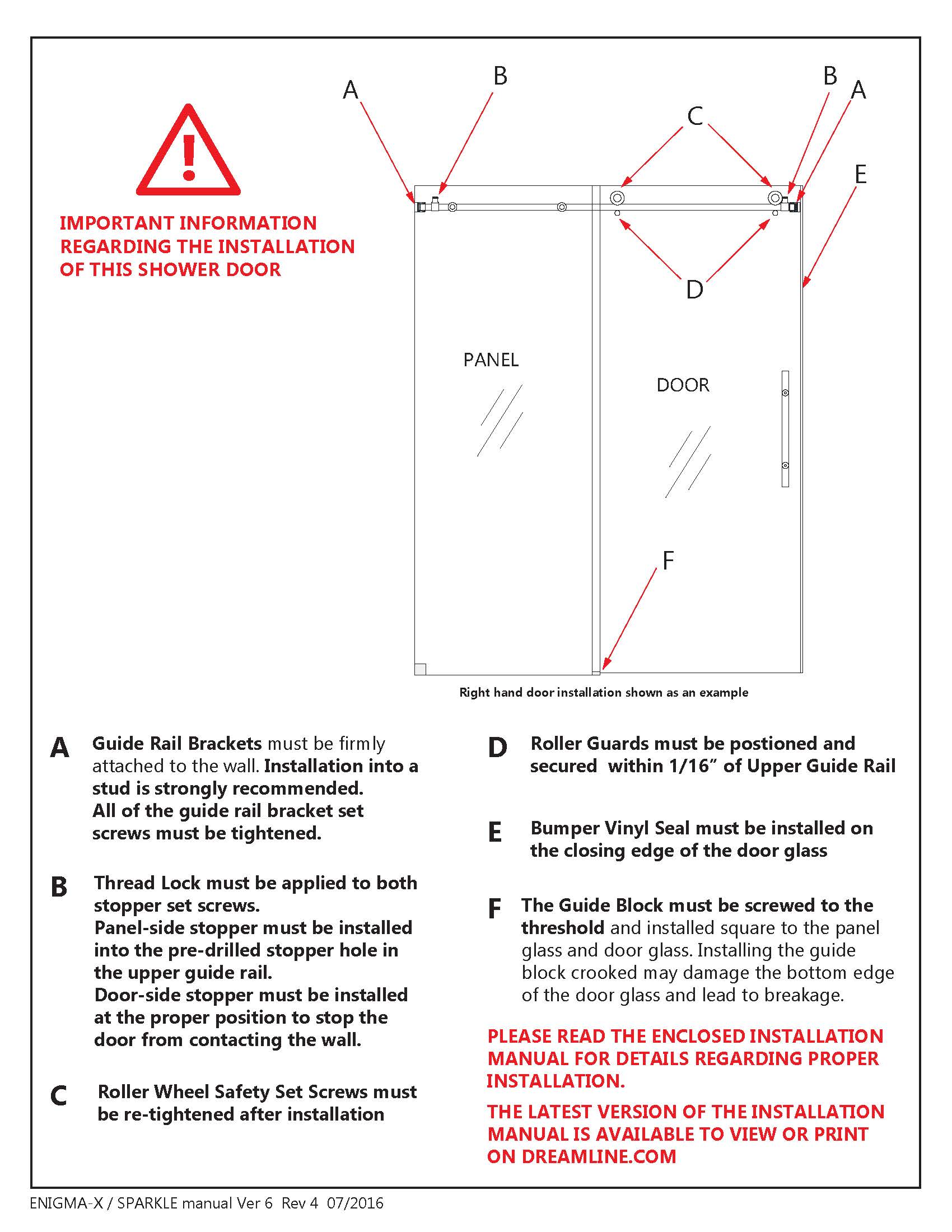

Dremline Enigma X Glass Shower Door Install manual - Section Preperation Instructions
Dremline Enigma X Glass Shower Door Install manual – Section Preperation Instructions



Right hand door installation shown as an example

Guide Rail Brackets must be firmly attached to the wall. Installation into a

stud is strongly recommended. All of the guide rail bracket set screws must be tightened.

Thread Lock must be applied to both stopper set screws.

Panel-side stopper must be installed into the pre-drilled stopper hole in the upper guide rail.

Door-side stopper must be installed at the proper position to stop the door from contacting the wall.

Roller Wheel Safety Set Screws must be re-tightened after installation

The Roller Guards must be postioned and secured within 1/16” of Upper Guide Rail

Bumper Vinyl Seal must be installed on the closing edge of the door glass

The Guide Block must be screwed to the threshold and installed square to the panel

glass and door glass. Installing the guide block crooked may damage the bottom edge of the door glass and lead to breakage.

PLEASE READ THE ENCLOSED INSTALLATION MANUAL FOR DETAILS REGARDING PROPER INSTALLATION.

THE LATEST VERSION OF THE INSTALLATION MANUAL IS AVAILABLE TO VIEW OR PRINT ON DREAMLINE.COM

Preparation to install the DreamLine Enigma X Glass Shower Door

After opening all boxes and packages, read this introduction carefully. Check that all of the needed parts are included in the package by marking all the components on the “Detailed Diagram of Shower Door Components”. Examine boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or is missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if you have any questions.

Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

If this unit is going to be installed in a new construction, install all of the required plumbing and drain- age before installing the shower.

Use a competent and licensed (if required by local code) plumber for all DreamLine Enigma X plumbing installation.

Prior to installation, ensure that the installation surface is leveled. A and solid and will be able to support the total weight of the unit.

Also, make sure the walls are at right angles. Irregular installation surface level. Or improper angle of side walls will result in serious problems for your installation.

Please note that some adjustments and drilling might be necessary during the installation process.

Please make sure that prior to beginning the installation, the surfaces are leveled and solid.

They need to be able to support the total weight of the unit.

Ensure to protect all primary surfaces of the product during installation.

  • Never set your glass down directly onto a tile floor.
  • Leave corner protectors in place until necessary to remove them.
  • Always use a piece of wood or cardboard to protect the bottom edge
  • protect corners of the glass prior to and during installation.

This unit must be installed upon a finished threshold and against finished walls.

NOTE! The DreamLine Enigma X does not have out-of-plumb adjustment. Make sure your walls are at right angles.

The DreamLine Enigma X shower door requires a minimum 2-3/4”of flat threshold space for installation.

Please note that Step #11 has an option for installing the guide rail brackets to the wall using anchors.

However, the manufacturer strongly recommends installing these heavy doors to the studs.

Or to pre-installed 2×6 wood reinforcements behind the wall in the area where the guide rail brackets will be attached to the wall.

Note: The installation of this unit requires that you drill down into the threshold.

image Attention: This door is extremely heavy and requires professional installation and 2 installers.

NOTE: This door is reversible for right or left-hand door installation. The right-hand door installation is shown as an example throughout this manual. For the left -hand door installation, simply begin on the opposite wall and reverse the orientation of the steps shown.

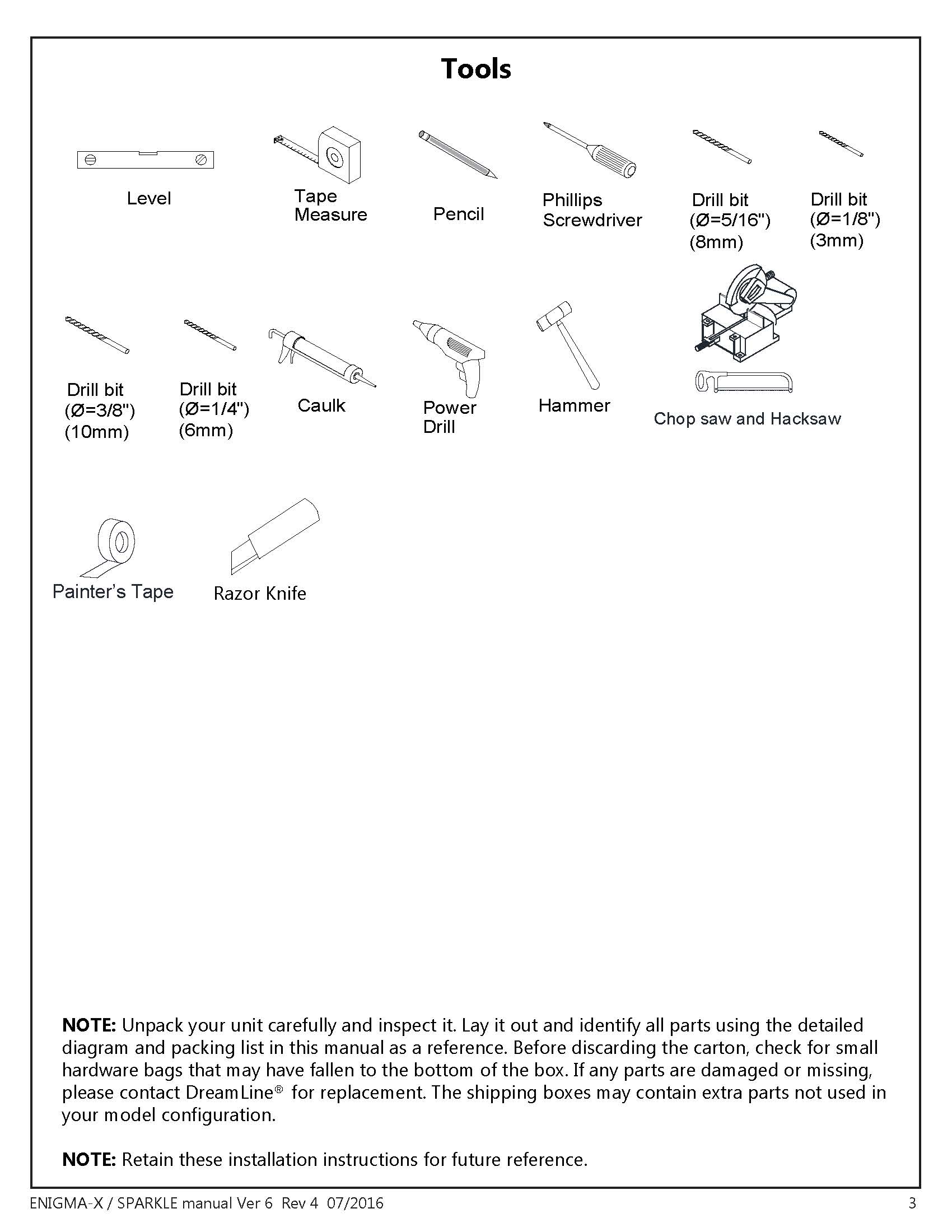

Needed Tools For The DreamLine Enigma X Glass Shower Door Installation

Dremline Enigma X Glass Shower Door Install manual - required tool list
Dremline Enigma X Glass Shower Door Install manual – required tool list
  • Phillips Screwdriver
  • A (Ø=5/16″) Drill Bit
  • B (Ø=1/8″) Drill Bit
  • C (Ø=3/8″)Drill Bit
  • D (Ø=1/4″) Drill Bit
  • Level
  • Tape Measure
  • Pencil
  • Caulk
  • Power Hammer
  • Chop saw and Hacksaw
  • (10mm) (6mm) Drill
  • Painter’s Tape
  • Razor Knife

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine ® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

Download the Installation Instructions PDF here for future reference.

Detailed Diagram ‘A’ of the Dremline Enigma X Glass Shower Door Components

DreamLine Enigma X glass shower door Packing List A for Model # SHDR-61487610-07/-08 SHDR-61607610-07/-08 SHDR-61606210-07/-08
DreamLine Enigma X glass shower door Packing List A

Packing List A

These instructions will show the installation of the DreamLine Enigma X glass shower door. ** not used with the 72” configuration Please follow the same steps for the installation of the tub door.

DreamLine Enigma X glass shower door Install manual - Detail "B"
DreamLine Enigma X glass shower door Install manual – Detail “B”

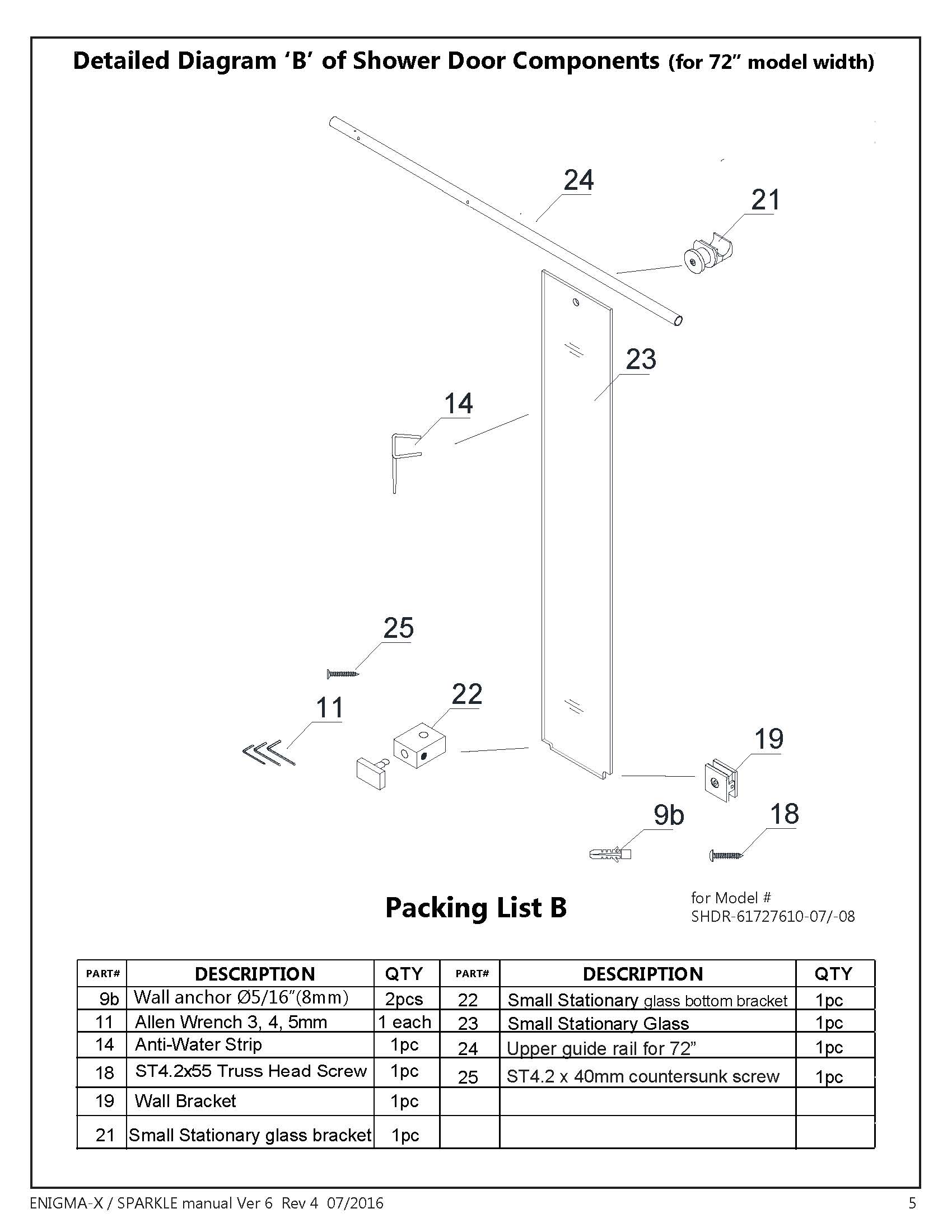

Detailed Diagram ‘B’ of the dreamline glass shower door components (for 72” model width)

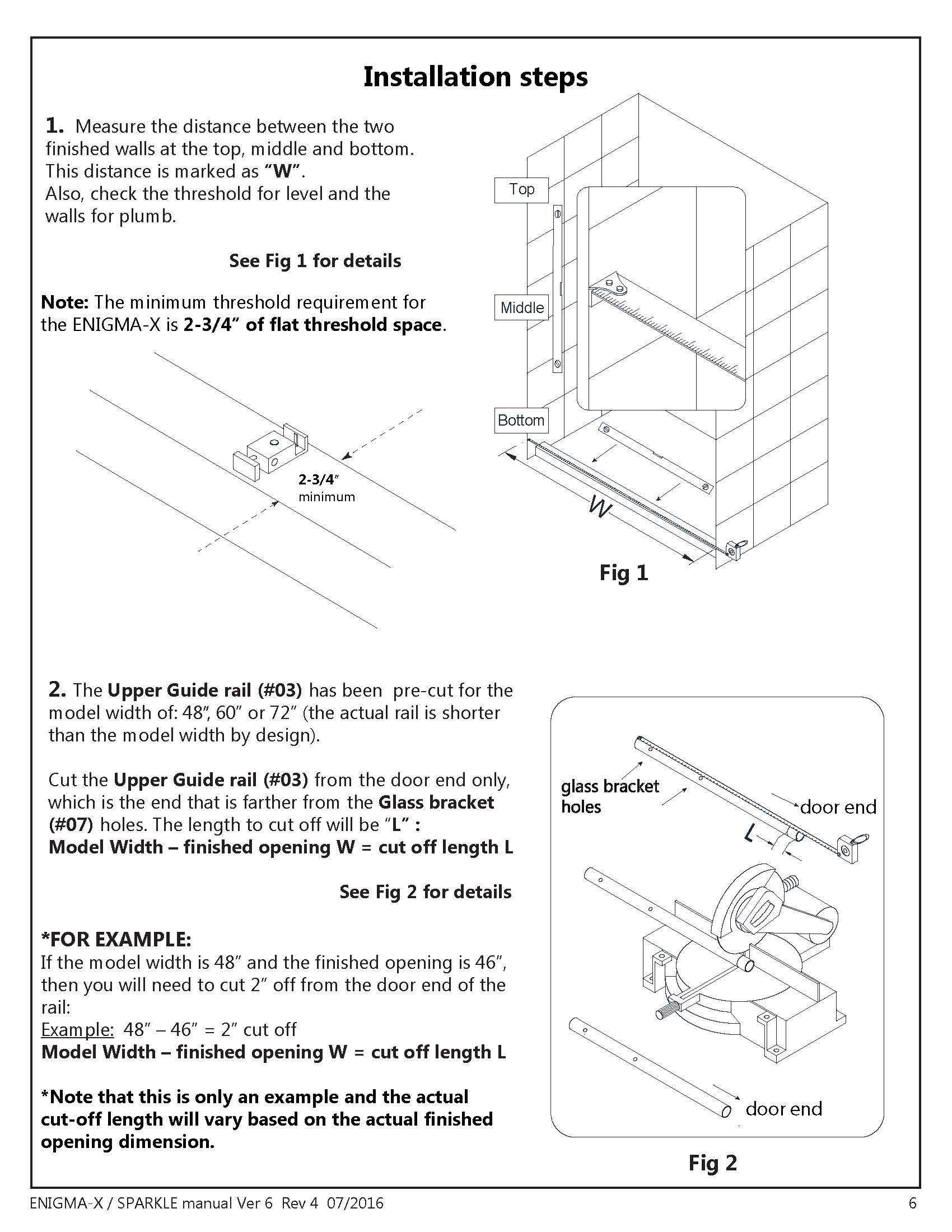

DreamLine Enigma Shower Door Installation steps

Top

Measure the distance between the two finished walls at the top, middle and bottom. This distance is marked as “W”.

Also, check the threshold for level and the walls for plumb.

DreamLine Enigma X glass shower door Install manual - Installation Steps
DreamLine Enigma X glass shower door Install manual – Installation Steps

Middle

Note: The minimum threshold requirement for the DreamLine Enigma X Glass Shower Door is 2-3/4” of flat threshold space.

Bottom

2-3/4” W minimum

DreamLine Enigma X glass shower door Install manual FIg. 3 & 4
DreamLine Enigma X glass shower door Install manual FIg. 3 & 4

The Upper Guide rail (#03) has been pre-cut for the model width of: 48”, 60” or 72” (the actual rail is shorter

than the model width by design).

Cut the Upper Guide rail (#03) from the door end only, which is the end that is farther from the Glass bracket (#07) holes. The length to cut off will be “L” :

Model Width – finished opening W = cut off length L

See Fig 2 for details

glass bracket holes

door end

*FOR EXAMPLE:

If the model width is 48” and the finished opening is 46”, then you will need to cut 2” off from the door end of the rail:

Example: 48” – 46” = 2” cut off

Model Width – finished opening W = cut off length L

*Note that this is only an example and the actual cut-off length will vary based on the actual finished opening dimension.

Fig 2

door end

Attach the Upper guide rail (#03) to the Stationary glass 1 2

(#02) with the Glass brackets (#07) and tighten the bolts into

the pre-drilled holes in the Upper guide Rail (#03). Make sure both adjustment disks are installed in the same direction with the high spot towards the door end. (see *Note below)

Make sure that the guide rail is attached parallel with the top

edge of the stationary panel glass.

Slide the Door Stoppers (#01) onto each end of the Upper 3 4

guide rail (#03) and secure them temporarily using the 4mm allen wrench.

(#11). Install the panel-end stopper into the pre-drilled stopper hole in the Upper Guide Rail (Fig 3.3). Slide the Guide Rail brackets (#08) onto each end of the Upper guide rail (#03) and temporarily secure them as well.

Next, assemble the Wall Bracket (#19) onto the bottom 5 6

corner of the Stationary glass (#02) as shown in FIG 3.5.

Use the provided gaskets to protect the glass shower door elements.

See Fig. 3 and Fig. 4 for details glass bracket Fig 3

*NOTE: The outer glass bracket disk has an eccentric bushing for adjustment. Be sure to install both glass bracket disks with the high spot of the bushing pointed towards the door end of the guide rail. See the detail of the disks below as viewed from inside prior to installing on the glass.

Door end of guide rail High spot of disk bushing

Fig 4

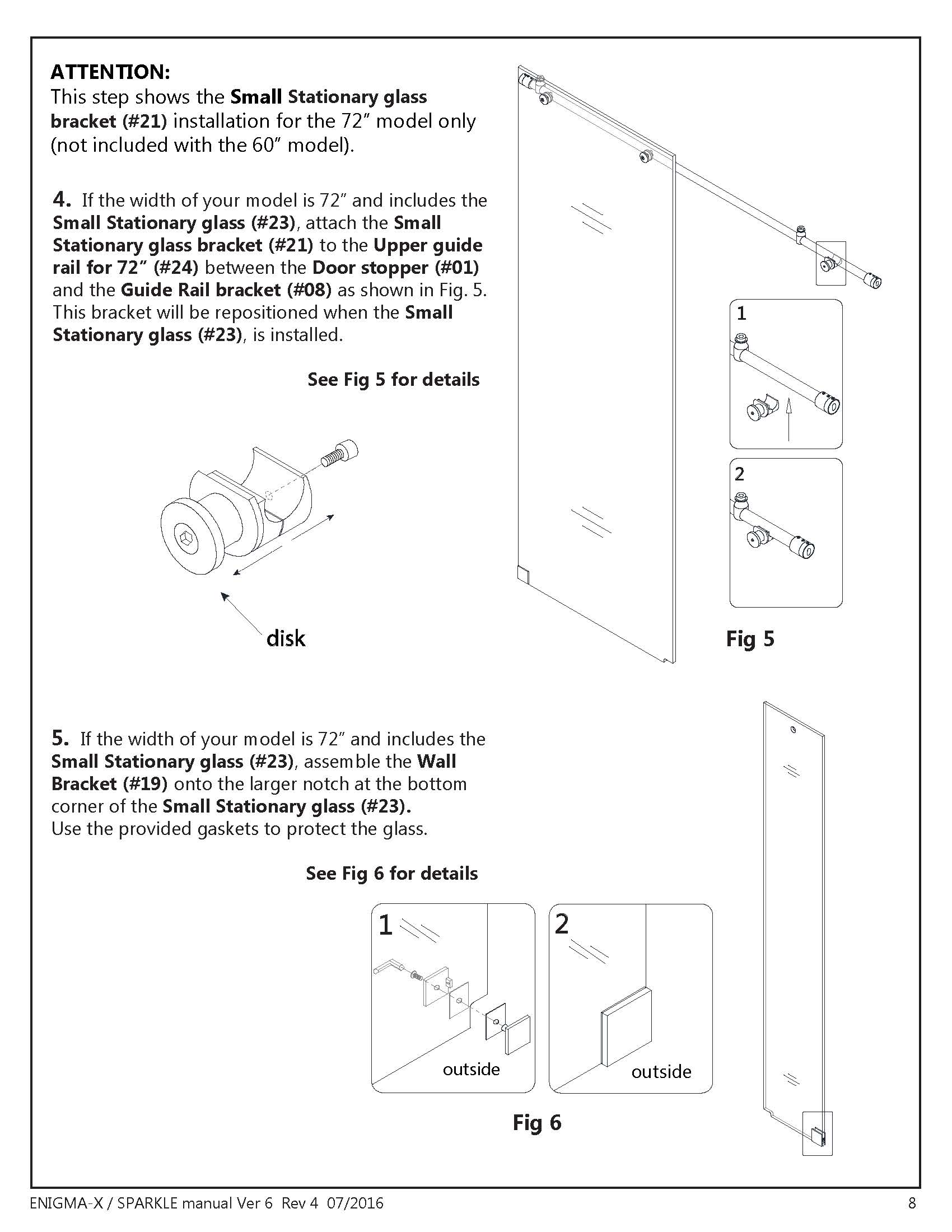

ATTENTION:

This step shows the Small Stationary glass bracket (#21) installation for the 72” model only (not included with the 60” model).

If the width of your model is 72” and includes the Small Stationary glass (#23),

attach the Small Stationary glass bracket (#21) to the Upper guide rail for 72” (#24)

between the Door stopper (#01) and the Guide Rail bracket (#08) as shown in Fig. 5.

This bracket will be repositioned when the Small 1

Stationary glass (#23), is installed.

See Fig 5 for details

If the width of your model is 72” and includes the Small Stationary glass (#23), assemble the Wall Bracket (#19) onto the larger notch at the bottom corner of the Small Stationary glass (#23).

Use the provided gaskets to protect the glass shower door.

See Fig 6 for details

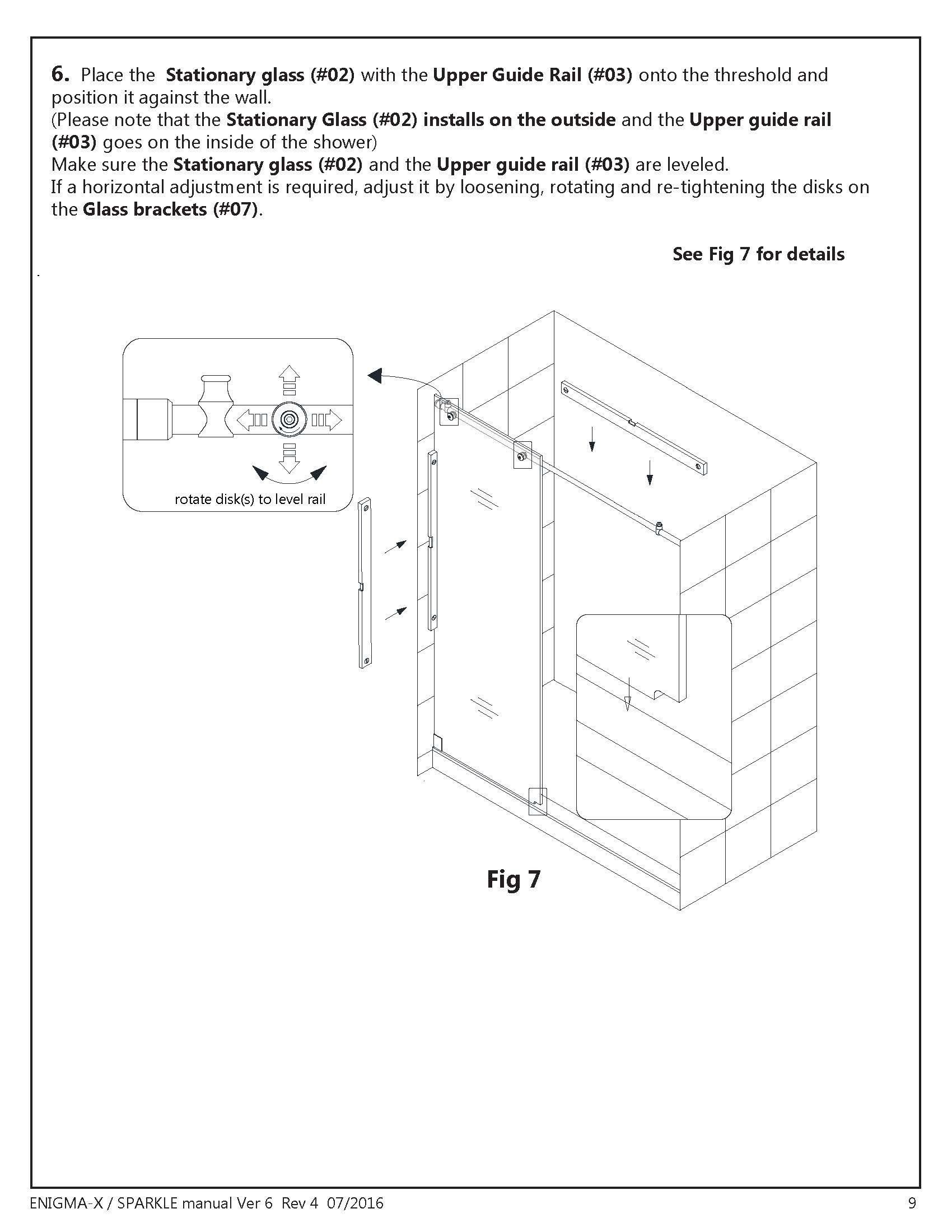

Place the Stationary glass (#02) with the Upper Guide Rail (#03) onto the threshold and position it against the wall.

(Please note that the Stationary Glass (#02) installs on the outside and the Upper guide rail (#03) goes on the inside of the shower)

Make sure the Stationary glass (#02) and the Upper guide rail (#03) are leveled.

If a horizontal adjustment is required, adjust it by loosening, rotating and re-tightening the disks on the Glass brackets (#07).

See Fig 7 for details

DreamLine Enigma X glass shower door Install manual page 8
DreamLine Enigma X glass shower door Install manual page 8

rotate disk(s) to level rail

This step shows the Small Stationary Glass (#23) installation for the 72” model only (not included with the 60” model).

rotate disk(s) to level rail

If installing the DreamLine Enigma X Glass Shower Door 72” model:

Unscrew the disk from the Small Stationary glass bracket (#21) and loosen the set screw that secures the bracket to the guide rail. If necessary, slide the Door Stopper (#01) away from the area so that it will not interfere with the placement of the Small Stationary Glass (#23).

Position the Small Stationary Glass (#23) onto the threshold and butt it up against the wall.

Align the Small Stationary glass bracket (#21) with the hole in the Small Stationary Glass (#23), re-attach the outer disk and secure the Small Stationary glass bracket (#21) to the Upper guide rail for 72”(#24).


See Fig 8a & 8b for details

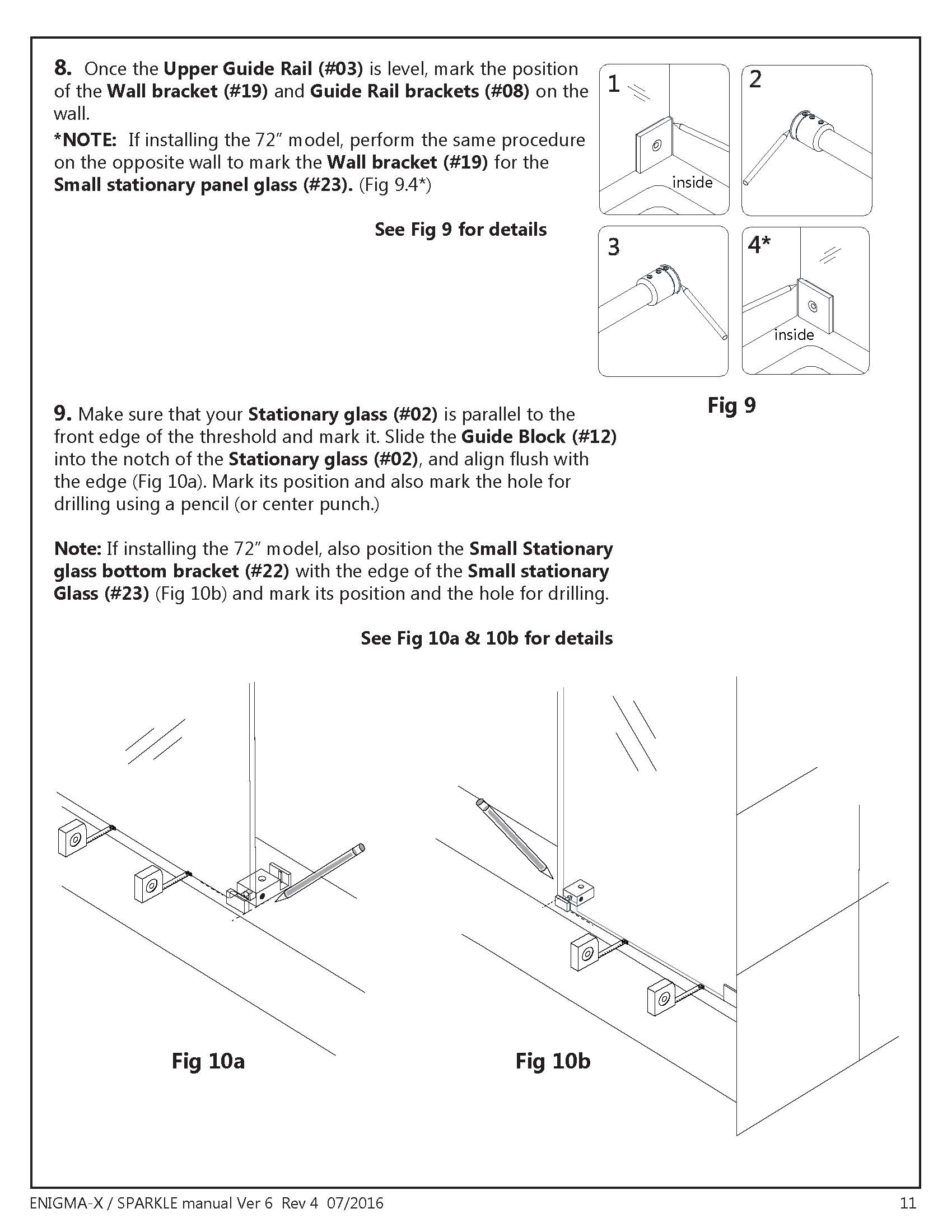

Once the Upper Guide Rail (#03) is level, mark the position of the Wall bracket (#19) and Guide Rail brackets (#08) on the wall.

*NOTE: If installing the 72” model, perform the same procedure on the opposite wall to mark the Wall bracket (#19) for the Small stationary panel glass (#23). (Fig 9.4*)

See Fig 9 for details

Make sure that your Stationary glass (#02) is parallel to the front edge of the threshold and mark it.

Slide the Guide Block (#12) into the notch of the Stationary glass (#02), and align flush with the edge (Fig 10a). Mark its position and also mark the hole for drilling using a pencil (or center punch.)

Note: If installing the 72” model, also position the Small Stationary glass bottom bracket (#22) with the edge of the Small stationary Glass (#23) (Fig 10b) and mark its position and the hole for drilling.

See Fig 10a & 10b for details

Fig 9

DreamLine Enigma X glass shower door - setting the stationary Glass Install manual Fig 7 detail
DreamLine Enigma X glass shower door – setting the stationary Glass Install manual Fig 7 detail

Fig 10a Fig 10b

DreamLine Enigma X glass shower door - setting the stationary Glass
DreamLine Enigma X glass shower door – setting the stationary Glass

After marking the positions of all the hardware, set the Stationary glass (#02) with the Upper Guide Rail (#03) aside.

(If installing the 72” model, also remove the Small stationary panel glass (#23) from the Upper Guide Rail (#03)).

Remove the Guide Rail Brackets (#08) from the Upper Guide Rail (#03) and the Wall bracket (#19) from the Stationary glass (#02). Place the Wall bracket (#19) and Guide Rail Brackets (#08) back to the outlined positions and mark the 3 4* holes for drilling.

*NOTE: If installing the 72” model, perform the same procedure on the opposite wall to mark the Wall bracket (#19) for the Small stationary panel glass (#23). (Fig 11.4*)

See Fig 11 for details

DreamLine Enigma X glass shower door Install Fig 9-11
DreamLine Enigma X glass shower door Install Fig 9-11

Fig 11

DreamLine Enigma X glass shower door Install manual Fig 11 & 12 detail
DreamLine Enigma X glass shower door Install manual Fig 11 & 12 detail

Separate the Guide Rail Bracket (#08) sleeve from the base by loosening the set screws (leave the sleeve on the upper guide rail)

base 1 2

**NOTE: Step #11 has an option for installing the guide rail brackets to the wall using anchors. However, the manufacturer strongly recommends installing these heavy doors to the studs or to pre-installed 2×6 wood reinforcements behind the wall in the area where the guide rail brackets will be attached to the wall.

**For the recommended installation into a stud, drill a Ø1/4”

Ø5/16” = (8mm)

3** Ø3/8”

4**Ø3/8”

hole up to the stud and let the screw bore into the wood.

Drill a hole for the Wall bracket (#19) using a Ø5/16” (8mm) drill bit and insert the Wall anchor (#9b) (FIG. 12.1 & 12.2).

Drill the holes for the Guide Rail brackets (#08) using a Ø3/8” (10mm) drill bit and insert the Wall anchors (#9a). (FIG 12.3…12.6)**.

If mounting into a stud (recommended), drill a Ø1/4” hole and do not use the wall anchors (see note above).

DreamLine Enigma X glass shower door Install manual Fig 13 - 14a
DreamLine Enigma X glass shower door Install manual Fig 13 – 14a

Fasten the Wall bracket (#19) to the wall using the ST4.2×55 Truss head screw (#18).(Fig 13.1)

Mount the base parts of the Guide Rail brackets (#08) onto both walls using the ST6×55 Large Truss head screw (#10).

Note that the adjustment set screws must be aligned vertically for easier access to adjust for level after the glass is installed.

See Fig 13 for details

Fig 13

13a. To install Guide Block (#12): Loosen the set screw and remove the guide block face plate (Fig. 14a.5) Apply silicone to the underside of the Guide Block (#12) and screw the Guide Block (#12) to the threshold as described below:

*NOTE:

◾For installation into an acrylic threshold:

drill an Ø1/8”(3mm) hole and use the ST4.2 x 40mm countersunk screw (#17)

OR

◾For installation into a tile threshold:

drill a Ø5/16”(8mm) hole, install wall anchor 5/16” (#09b) and use the ST4.2 x 40mm countersunk screw (#17)

For tub installations: the bottom bracket must be screwed down to the tub deck. Use a pencil or a center-punch to mark the hole only use anchor 3 with tile threshold

*see note

See Fig 14a for details

Part#12 – Guide Block (with caps)

Guide Block must be installed square to the plane of the glass

13b. If installing the 72” model, repeat step#13a for the Small Stationary Glass bottom bracket (#22). Loosen the set screw and remove the guide block face plate (Fig. 14b.5) Apply silicone to the underside of the Guide Block (#22) and screw the Guide Block (#22) to the threshold.

NOTE:

Before you install the Stationary glass (#02), you need to take the Door Glass (#05) into the shower area and lean it against the wall. After the Stationary glass (#02) is installed, it may not be possible to easily get the door glass into the shower.

Always use padding to protect the DreamLine Enigma X Glass Shower Door and shower base surfaces.

NOTE: DO NOT attach the handle to the door glass until instructed to do so.

Do Not attempt to lift the door glass with the handle as this may result in damage to the glass and/or serious personal injury. Use a professional grade glass suction cup and an assistant.

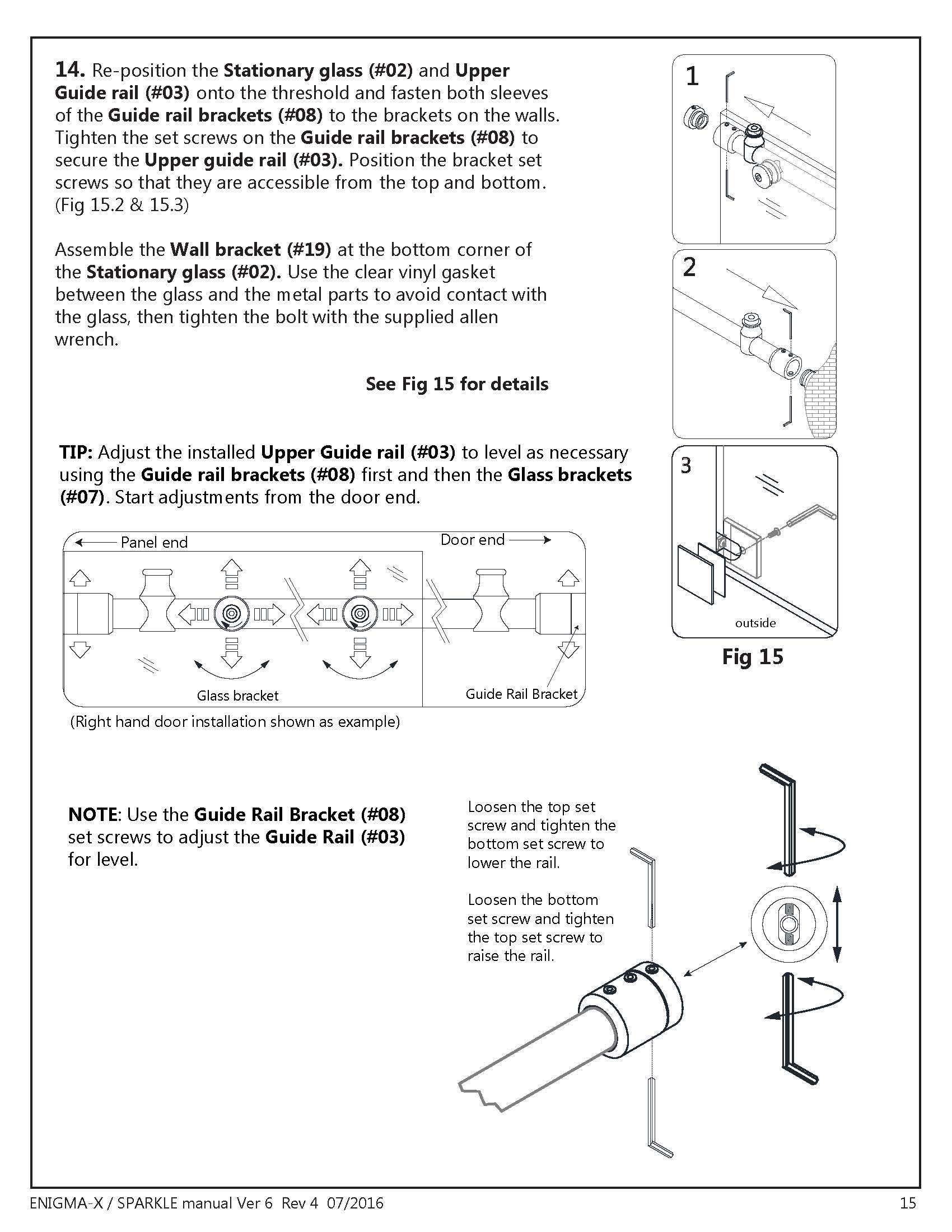

Re-position the Stationary glass (#02) and Upper Guide rail (#03) onto the threshold and fasten both sleeves of the Guide rail brackets (#08) to the brackets on the walls. Tighten the set screws on the Guide rail brackets (#08) to secure the Upper guide rail (#03). Position the bracket set screws so that they are accessible from the top and bottom. (Fig 15.2 & 15.3)

Assemble the Wall bracket (#19) at the bottom corner of

the Stationary glass (#02). Use the clear vinyl gasket 2

between the glass and the metal parts to avoid contact with the glass, then tighten the bolt with the supplied allen wrench.

See Fig 15 for details

DreamLine Enigma X glass shower door Install manual Fig 14b detail
DreamLine Enigma X glass shower door Install manual Fig 14b detail

TIP: Adjust the installed Upper Guide rail (#03) to level as necessary using the Guide rail brackets (#08) first and then the Glass brackets (#07). Start adjustments from the door end.

Panel end Door end Glass bracket Guide Rail Bracket

(Right hand door installation shown as example)

NOTE: Use the Guide Rail Bracket (#08) set screws to adjust the Guide Rail (#03) for level.

  • Loosen the top set screw and tighten the bottom set screw to lower the rail.
  • Next loosen the bottom set screw and tighten the top set screw to raise the rail.
DreamLine Enigma X glass shower door Install manual Fig 15 - Guide-Rail
DreamLine Enigma X glass shower door Install manual Fig 15 – Guide-Rail

Attach the Guide block face plate to the installed Guide Block (#12) and tighten the set screw with the supplied allen wrench. Use the supplied Decorative caps to cover the screw holes.

See Fig 16 for details

If installing the 72” model, attach the Small 1 2 stationary panel glass (#23) to the Upper Guide Rail (#03) using the Small Stationary Glass Bracket (#21).

Attach the face plate to the Wall Bracket (#19).

See Fig 17 for details

Note: Use a razor knife to trim the Anti-water strip (#14) at the top to avoid interfering with the Roller guards (#20).

Attach the Guide block face plate to the installed Guide Block (#22) and tighten the set screw with the supplied allen wrench. Make sure that the clear gaskets are in place to protect the glass. Use the supplied Decorative caps to cover the screw holes.

See Fig 18 for details

18a. For the 48”or 60“ model size: Measure the distance from the edge of the Guide block (#12) to the wall .This distance will be “X”.

Cut the Anti-splash threshold (#15) to the size of: X” + 3/8”.

18b. For the 72” model size: Measure the distance between the edge of the Guide block (#12) to the Small Stationary Glass bottom bracket (#22) .This distance will be “L”.

Cut the Anti-splash threshold (#15) to the size of: L” + 3/4”.for 48”or 60“ for 72” model

Apply silicone to the bottom of the Anti-Splash Threshold 1 2

(#15.) Remove the guide block face plate, Insert one end of the

Anti-splash threshold (#15) fully into the Guide block (#12)

and replace the guide block face plate.

Align the Anti-splash threshold (#15) parallel with the front edge of the shower base or threshold.

Cover the other end of the Anti-splash threshold (#15) with the

Threshold cap (#16) against the wall.

See Fig 20 for details

DreamLine Enigma X glass shower door Install manual Section page 18
DreamLine Enigma X glass shower door Install manual Section page 18

For the 72” model: Remove the face plate from the Small Stationary Glass bottom bracket (#22) and insert the Anti-splash threshold (#15). Replace the guide block face plate.

See Fig 20.5* for details

Temporarily secure the Anti-Splash Threshold (#15) to the threshold with several pieces of painter’s tape to hold it in position tight to the threshold until the silicone fully cures.

3 only use cap when installing up to a wall for the DreamLine Enigma X Glass Shower Door 48” & 60” model

NOTE: Do not attach the handle to the door glass until instructed to do so. Do not attempt to lift the door glass with the handle as this may result in damage to the glass and/or serious personal injury.

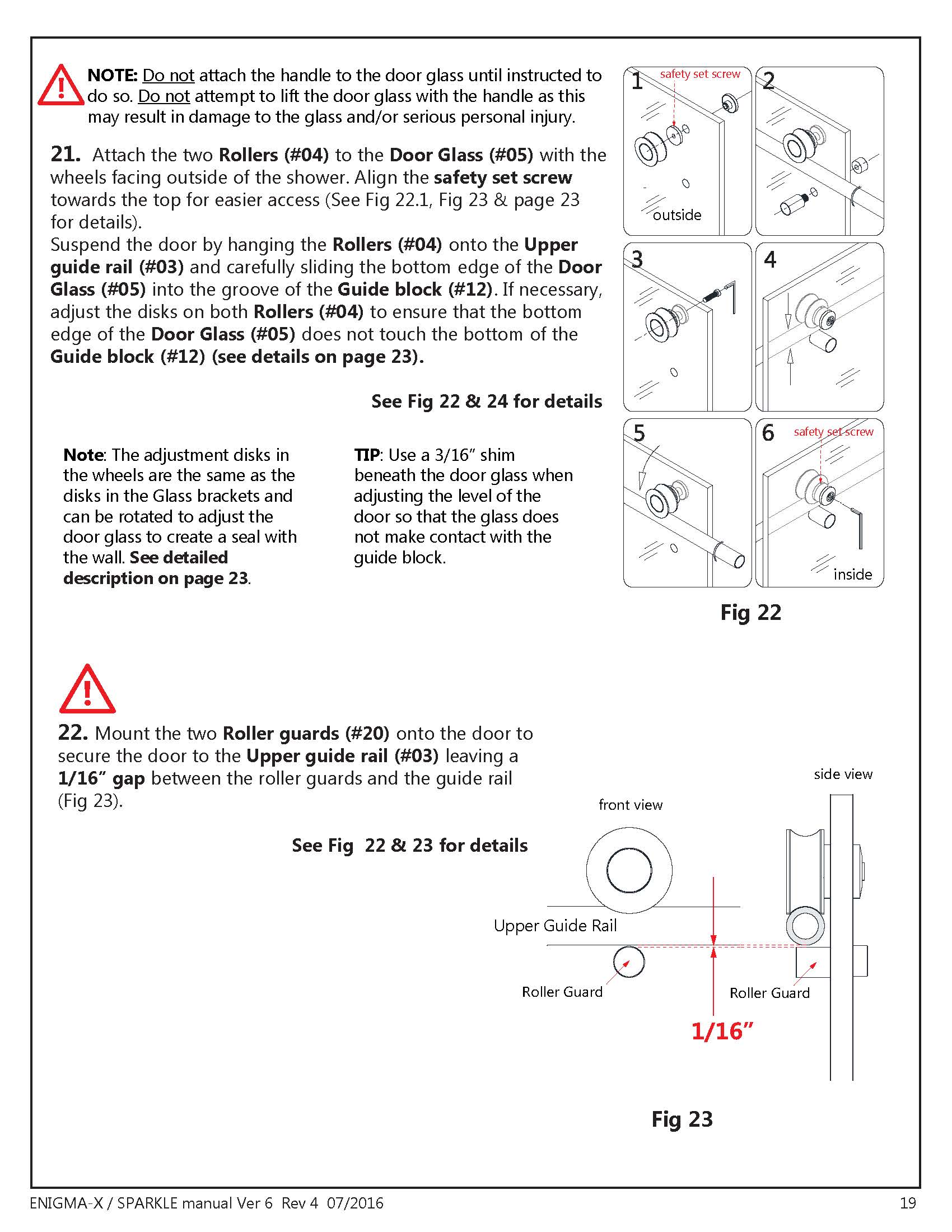

Attach the two Rollers (#04) to the Door Glass (#05) with the wheels facing outside of the shower. Align the safety set screw towards the top for easier access (See Fig 22.1, Fig 23 & page 23 for details).

DreamLine Enigma X glass shower door Install manual NOTE Sections 21 & 22
DreamLine Enigma X glass shower door Install manual NOTE Sections 21 & 22

Suspend the door by hanging the Rollers (#04) onto the Upper guide rail (#03) and carefully sliding the bottom edge of the enigma x glass shower door (#05) into the groove of the Guide block (#12). If necessary, adjust the disks on both Rollers (#04) to ensure that the bottom edge of the Door Glass (#05) does not touch the bottom of the Guide block (#12) (see details on page 23).

See Fig 22 & 24 for details

Note:

TIP: Use a 3/16” shim the wheels are the same as the beneath the door glass when disks in the Glass brackets and adjusting the level of the sliding glass shower door.

The adjustment disks can be rotated to adjust the door. To create a seal without to make contact with the the wall. See detailed guide block.

Mount the two Roller guards (#20) onto the door to secure the door to the Upper guide rail (#03) leaving a 1/16” gap between the roller guards and the guide rail

Note: The Safety set screw on the wheel MUST BE tightened after installation to prevent the large bolt from coming loose. See details on page 23.

DreamLine Enigma X glass shower door Install manual Section - Set Door Level & Seal Installation
DreamLine Enigma X glass shower door Install manual Section – Set Door Level & Seal Installation

Press the Anti-water strip (#14) onto the vertical edge of the Stationary glass (#02) and the Door Glass (#05). Also press the Bumper strip (#13) onto the vertical edge of the Door Glass (#05) (Fig 25.2).

For the 72” model: Attach Anti-water strip (#14) to the edge of door the Small Stationary Glass (#23). The Bumper strip (#13) is not necessary with the 72” model (Fig 25.3*).

Mount the Handle (#06) to the sliding glass shower door (#05).

See Fig 25 for details

(Right hand door installation shown as example)

Note: Use a razor knife to trim the Anti-water strip (#14) at the top to avoid interfering with the Roller guards (#20).

Position the Door Stoppers (#01) and screw them tightly to the Upper Guide Rail (#03).

NOTE: The Door stoppers (#01) must be positioned correctly to prevent the handle from contacting the Stationary glass (#02)

(48”, 60” & 72“ models) and to stop the Sliding Glass shower Door (#05) in a position that allows the bumper strip to create a seal with the wall, but does not allow the door glass to bang into the wall during normal operation (48”& 60” models).

See Fig 26a & 26b for details

DreamLine Enigma X Glass Shower Door Stopper Installation:

Remove the set screw (Be sure to cover the shower drain to prevent loss)

Slide the Door Stopper (#01) onto the Upper Guide Rail (#03)

Align with stopper hole (stationary panel side only)

Apply Thread Lock Adhesive (#26) to the set screw threads

Tighten screw into the stopper hole (stationary panel side only)

Correctly position and tighten the set screw into the stopper (door side)

See Fig. 26b for details

DreamLine Enigma Glass Shower Door Install manual Section - Final Step where and how to apply silicone illustrations Install manual Section - How to install door stopper illustrations
DreamLine Enigma Glass Shower Door Install manual Section – Final Step where and how to apply silicone illustrations

Note: If installing the 72” model glass shower door, position the door-side stopper so that the handle cannot make contact with the small inline panel glass when the door is in the closed position.

(ENIGMA-X Right hand glass shower door installation shown as example) Fig 26b

72” model with Right hand door installation

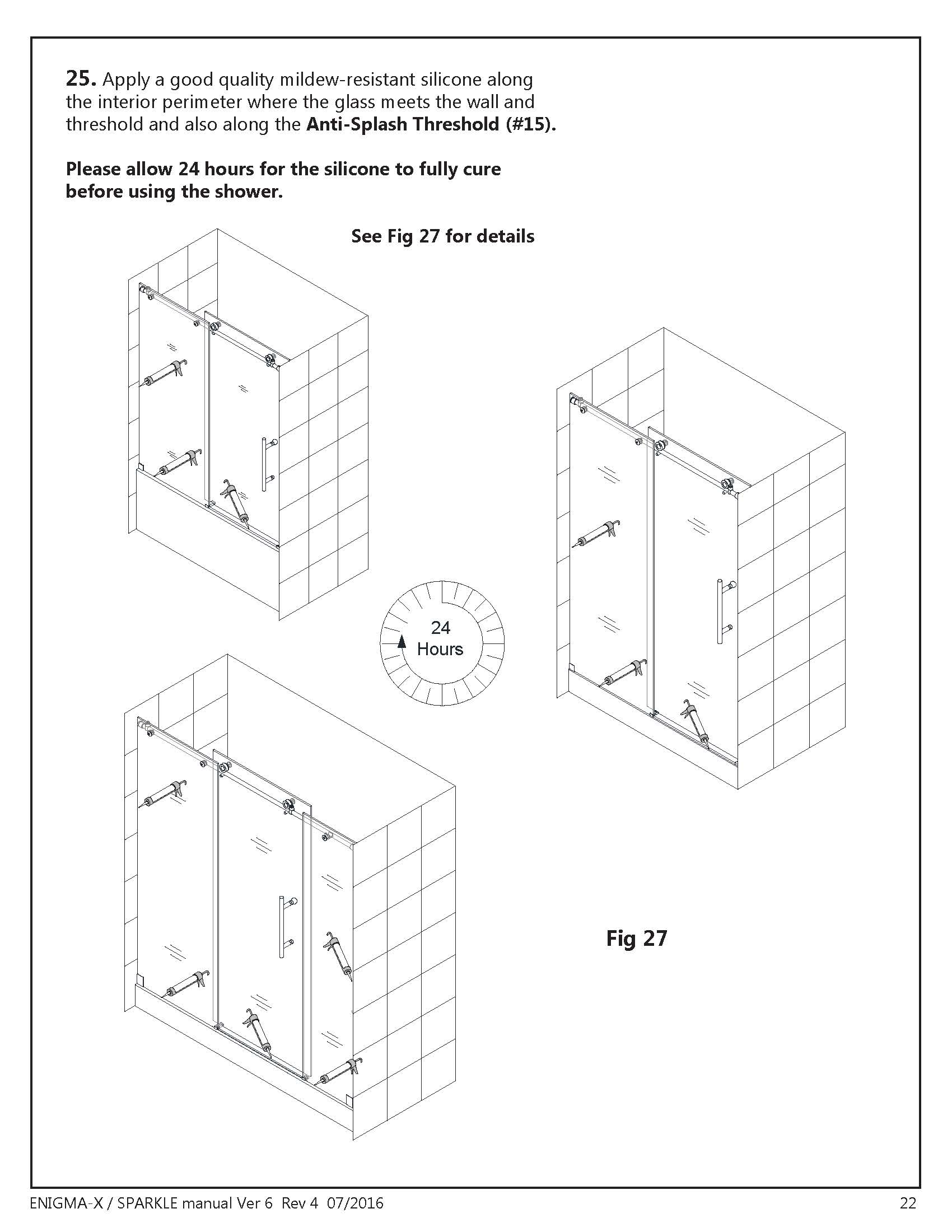

Apply a good quality mildew-resistant silicone along the interior perimeter where the glass meets the wall and threshold and also along the Anti-Splash Threshold (#15).

Please allow 24 hours for the silicone to fully cure before using the shower.

Fig 27

DreamLine Enigma Glass Shower Door Install manual Section - Final Step where and how to apply silicone illustrations
DreamLine Enigma Glass Shower Door Install manual Section – Final Step where and how to apply silicone illustrations

Enigma Roller adjustment procedure for DreamLine Enigma X Glass Shower Door

DreamLine Enigma Glass Shower Door Install manual Section - Adjustment process

To achieve minimal clearance beneath the door glass without making contact with the bottom guide block and creating a good seal with the wall.

Have at least two 3/16” shims or wedge shims (to maintain space beneath the door glass) and an assistant available to help with this procedure.

You should adjust only one wheel at a time and you may need to perform these steps more than once to get the desired results.

Caution: The DreamLine Enigma X Glass Shower Door is very heavy and may require two people to safely accomplish these steps.

First, loosen and lower either the Roller Guards (Enigma-X) or Bottom Rollers (Enigma) to allow you enough room to adjust the upper rollers. (If you have not installed these yet, you will be instructed to in step #7 after these adjustments are made)

  • Loosen the safety set screw on the roller. (See note 2 below)
  • Loosen the big bolt just enough so that you can rotate the adjustment disk. (See note 3 below)

Rotate the adjustment disk to raise or lower the door slightly with help from an assistant. You can use a small tool (like an allen wrench) to aid in turning this disk by inserting it into the small hole on the edge of the adjustment disk. (see note 4 & 4a below)

While holding the adjustment disk in place, retighten the big bolt. Use a shim or have an assistant hold the door glass in place while you retighten the big bolt.

Re-tighten the safety set screw to hold the big bolt in place (see note 5). Test the operation of the door.

For the Enigma-X:Reposition the rollerguards approximately 1/16” beneath the guide rail and retighten. For the DreamLine Enigma Glass Shower Door: adjust the lower rollers to make contact with the rail in the same manner as the upper rollers. During installation onto the glass, 3

Loosen this safety set screw first. This holds the big bolt in place and will must be re-tightened after roller is adjusted. Position this set screw at the top for easier access. It is extremely important that the safety set screw is re-tightened to secure the big bolt. rotate this disk so that the safety set screw is at the top for easier access.

The bushing that goes through the glass is elliptical and allows you to raise or lower the glass when you rotate the adjustment disk.

4a

Once you have loosened the set screw, you will be able to loosen this big bolt just enough to allow you to rotate the adjustment disk.

4

This is the adjustment disk. Once the big bolt is loosened, rotate this disk to raise or lower the door glass slightly. Use caution so that the door glass does not make contact with the guide block.

Insert a small tool (like an allen wrench) into this hole to help rotate this adjustment disk and also to hold the disk in place when you retighten the big bolt.

DreamLine Product Maintenance Suggestions For the Enigma X Glass Shower Door

BASES and BACKWALLS:

To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners.

Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS:

To ensure long lasting life for your DreamLine Enigma Glass Shower Door: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry).

To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE:

To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid.

If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

TEL: 866-731-2244

FAX: 866-857-3638 DREAMLINE.COM

For more information on DreamLine® Custom Glass Shower Door and Enclosures feel free to visit DreamLine.com

Go back to the Product Page
